Wire to Wire (RMC Connector)

Wire to Wire (RMC Connector)

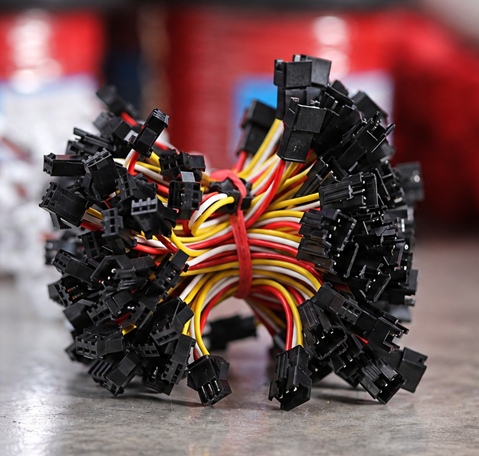

Wire to Wire (RMC Connector) assemblies are pre-terminated cable assemblies that connect two separate wire harnesses or cables using matching male and female RMC (Relimate) connectors. These assemblies enable quick, tool-free connections and disconnections between wire looms in electrical systems, appliances, and electronic equipment.



Wire to Wire (RMC Connector) assemblies are pre-terminated cable assemblies that connect two separate wire harnesses or cables using matching male and female RMC (Relimate) connectors. These assemblies enable quick, tool-free connections and disconnections between wire looms in electrical systems, appliances, and electronic equipment.

Specifications

Wire Size

26 to 22AWG (0.12 to 0.35Sq.mm.)

Number of Pins

02Pin to 16Pin

Connector Type

2517 & 2518 Male & Female Pair

Conductor

Stranded Bare / Tinned Copper

Insulation

Specially Formulated PVC

Temperature Rating

80°C (Standard), 105°C (Optional)

Standards

Conforms to UL758

Voltage Rating

250Vac

Amp Capacity

Up to 3A per Contact

RoHS Compliant

Yes

Customised Solutions

Length, Size & Colours can be customised

Features

null
Matched Male & Female Connectors

Reliable mating pair for secure wire-to-wire connection

null
Tool-Free Connection & Disconnection

Enables quick field installation and maintenance

Precision Crimped Terminals
Precision Crimped Contacts

Low contact resistance for efficient power and signal transfer

Wide Wire Gauge Range
Wide Gauge Compatibility

Supports 26 AWG to 22 AWG conductor sizes

null
RoHS Compliant

Free from restricted hazardous substances

Colour-Coded Wires
Colour-Coded Wiring

Reduces assembly errors and simplifies identification

100% CrimpTested
100% CrimpTested

Every crimp is tested for crimp force in a Swiss machine.

Applications

Frequently Asked Questions

Wire to Wire assemblies connect two wire harnesses together using a matched connector pair, while Wire to Board assemblies terminate a wire harness directly onto a PCB-mounted connector.

Yes. The tool-free mating design allows quick disconnection and reconnection, making them ideal for field maintenance and modular wiring systems.

Absolutely. We offer fully custom colour sequences and pin configurations to match your wiring diagram and assembly requirements.

Every Board to Board assembly undergoes 100% crimp force testing and visual inspection before dispatch.
