Wire to Board (RMC Connector)

Wire to Board (RMC Connector)

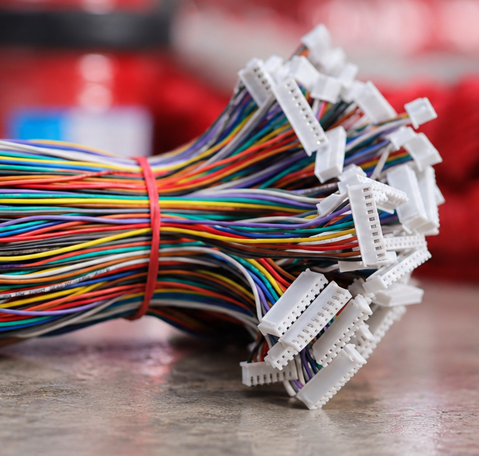

Wire to Board (RMC Connector) assemblies are pre-terminated wire harnesses that connect individual wires directly to PCB-mounted connectors. Designed for reliable and repeatable connections in electronic assemblies, these harnesses eliminate the need for soldering and enable quick, secure plug-and-play connectivity between wiring systems and circuit boards.



Alcop’s Wire to Board RMC Connector assemblies are manufactured with precision-crimped terminals, high-quality PVC-insulated wires, and industry-standard RMC (Relimate) connectors. Each assembly undergoes strict quality checks to ensure consistent crimp quality, proper insulation, and reliable electrical contact, making them ideal for OEM electronics, consumer appliances, and industrial control systems.

Specifications

Wire Size

26 to 22AWG (0.12 to 0.35Sq.mm.)

Number of Pins

02Pin to 16Pin

Connector Types

2515 (XH)

Conductor

Stranded Bare / Tinned Copper

Insulation

Specially Formulated PVC

Temperature Rating

80°C (Standard), 105°C (Optional)

Pitch

2.5 mm

Standards

Conforms to UL758

Voltage Rating

250Vac

Amp Capacity

Upto 3A (as per sizes)

RoHS Compliant

Yes

Customised Solutions

Length, Size & Colours can be customised

Features

null
Precision Crimped Terminals

Ensures reliable, low-resistance electrical contact

null
Plug-and-Play Design

Enables quick and error-free PCB connections

null
RMC (Relimate) Connector

Industry-standard connector for secure board-side mating

null
Wide Wire Gauge Range

Compatible with 28 AWG to 18 AWG conductors

null
RoHS Compliant

Safe for use in consumer and industrial electronics

null
Colour-Coded Wires

Simplifies polarity identification and assembly

null
100% CrimpTested

Every crimp is tested for crimp force in a Swiss machine.

Applications

Frequently Asked Questions

RMC or Relimate connectors are a popular series of miniature PCB-mount connectors widely used in Indian electronics manufacturing. They offer reliable mating, easy assembly, and availability in multiple pitches.

Yes. Alcop offers fully customised Wire to Board assemblies with any wire length, pin count, and colour configuration as per your design requirements.

Every Board to Board assembly undergoes 100% crimp force testing and visual inspection before dispatch.

Yes. We offer different wire sizes in different pins of a single connector based on your design requirements.
